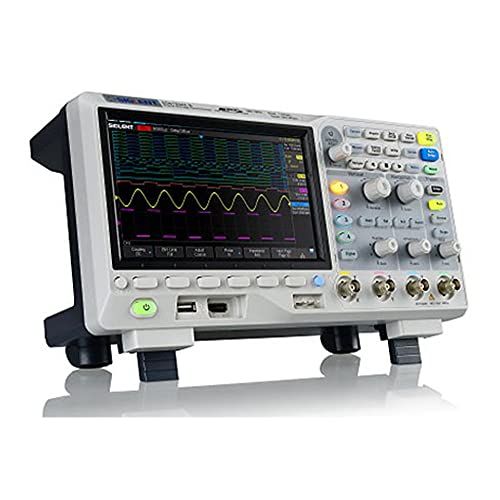

SIGLENT Digital Oscilloscope

Introduction

The SIGLENT Digital Oscilloscope is a versatile and powerful instrument that offers a wide range of features for electrical and electronic measurements. With its advanced functionality and high performance, it is suitable for a variety of applications, including research, development, education, and troubleshooting.

Factors to Consider

There are several factors that a user should consider before purchasing a digital oscilloscope. These factors can help determine if the SIGLENT Digital Oscilloscope is the right choice for their needs:

Bandwidth: The bandwidth of an oscilloscope determines its ability to accurately capture and display high-frequency signals. Higher bandwidth oscilloscopes are capable of capturing and analyzing faster signals, but they also tend to be more expensive. It is important to consider the bandwidth requirements of your specific application to ensure that the oscilloscope can meet your needs.

Sampling Rate: The sampling rate determines how often the oscilloscope captures the input signal. A higher sampling rate allows for better representation of the original signal, especially for high-frequency signals with fast rise and fall times. However, a higher sampling rate also requires more memory and processing power. It is crucial to determine the required sampling rate based on the expected signals to be measured.

Number of Channels: The number of channels in an oscilloscope defines the number of independent voltage waveforms that can be measured simultaneously. While a dual-channel oscilloscope is sufficient for most applications, some users may require more channels to monitor multiple signals simultaneously. The number of channels needed depends on the complexity of the circuits and systems being tested.

Display Size and Quality: The display size and quality are essential for clear and precise waveform visualization. A larger display with higher resolution allows for more detailed analysis of signals, especially when zooming in on specific waveform features. A high-quality display with good contrast and brightness ensures accurate measurements and reduces eye strain during long periods of use.

Additional Features: Consider the extra features offered by the oscilloscope, such as automatic measurements, built-in signal generators, advanced triggering options, and data analysis capabilities. These features can greatly enhance productivity and simplify complex measurements.

While there are other factors to consider, such as cost, brand reputation, and technical support, the above factors are the most important when it comes to the performance and capabilities of the oscilloscope.

Common Questions

Q: Can the SIGLENT Oscilloscope be connected to a computer for data analysis?

A: Yes, the SIGLENT Digital Oscilloscope comes with USB connectivity options that allow for easy connection to a computer. The included software provides advanced data analysis tools for in-depth waveform analysis, data storage, and documentation.

Q: Does the oscilloscope support automatic measurements?

A: Yes, the SIGLENT Oscilloscope offers a wide range of automatic measurement options, including voltage, frequency, period, rise time, fall time, and many more. These automated features save time and provide accurate measurements of waveform parameters.

Q: Can I upgrade the bandwidth or other features of the SIGLENT Oscilloscope later?

A: Upgrading the bandwidth or other features of the OSCILLOSCOPE is not possible. It is recommended to carefully consider the required specifications and choose the appropriate model from the start.

Conclusion

The SIGLENT Digital Oscilloscope is a top-quality instrument that offers high performance, advanced functionality, and a range of features that make it suitable for various applications. When considering purchasing an oscilloscope, it is important to evaluate factors such as bandwidth, sampling rate, number of channels, display size and quality, and additional features. The SIGLENT Oscilloscope meets these requirements and provides a reliable solution for accurate waveform analysis and measurement.
